| Version | NC = Normally Close |
|---|---|
| Thread size | M30 x 1.5mm |
| Power supply | 230V AC 50Hz |
| Power consumption | 2W |
| Inrush current | 300mA / 200ms |
| Press force | 100N +/- 15% |
| Max. Stroke | 4.5mm |
| Storage temperature | -25°C do +60°C |
| Ambient Temp. | Max. 60°C |
| Protection class | IP 54/II |
| Cable length | 90cm |
| Dimension [mm] |
Φ 41 x 65 |

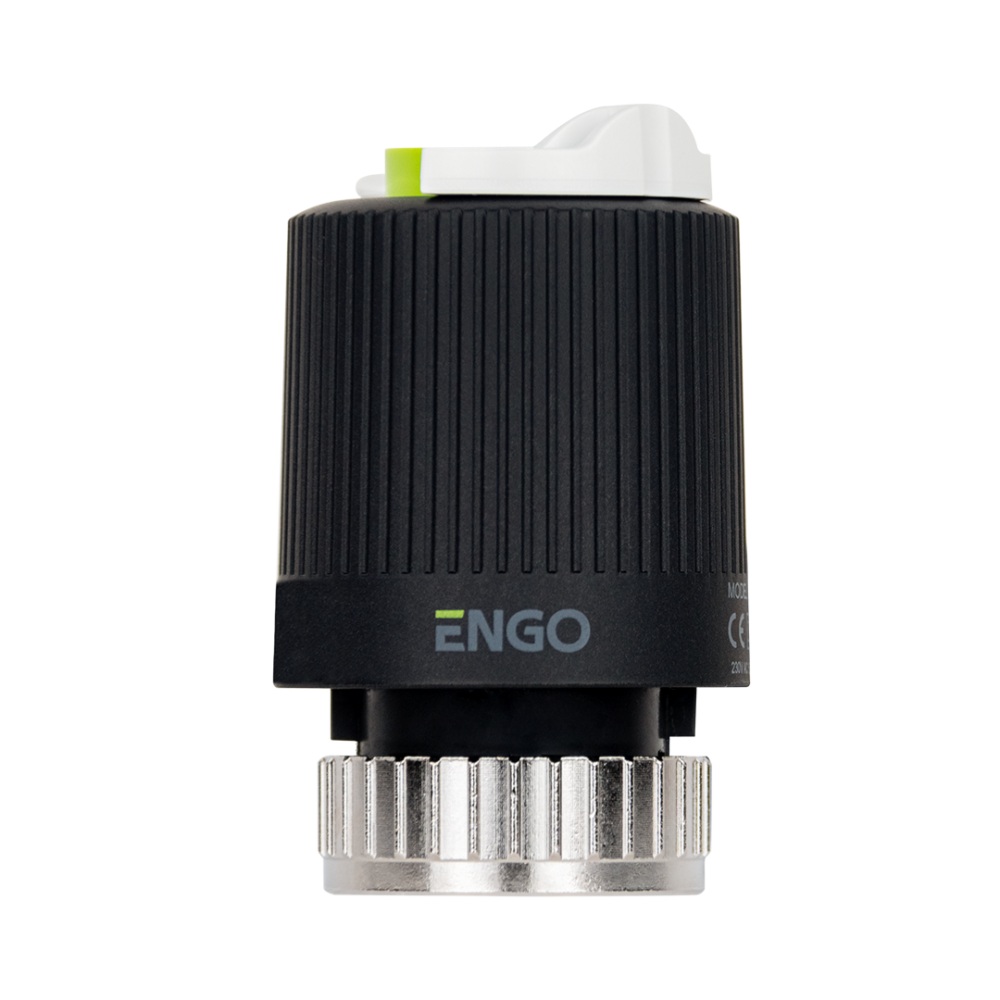

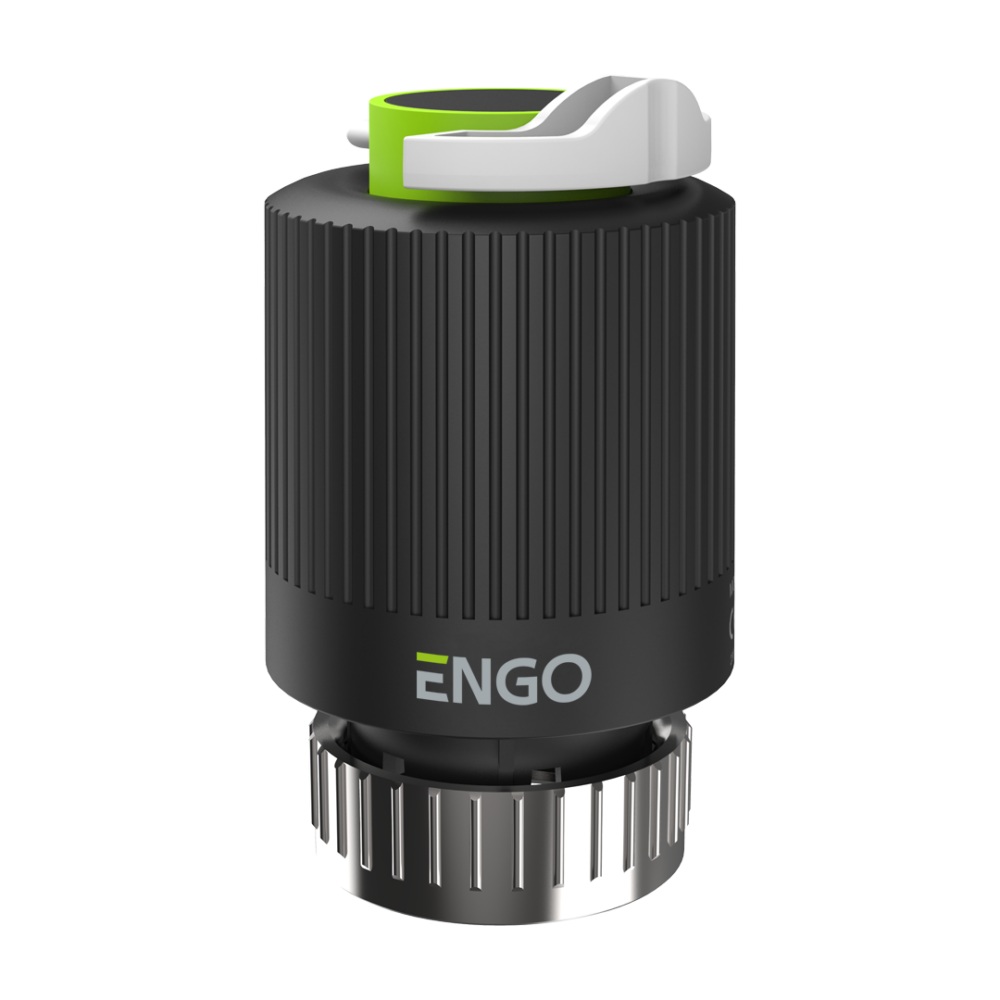

E30NC-230
Thermal Actuator 230V, M30x1,5, normally closed
- Thread size M30
- Low power consumption (only 2 W) – energy efficient
- Highly durable – lasting for years
- Small footprint – hassle-free installation
